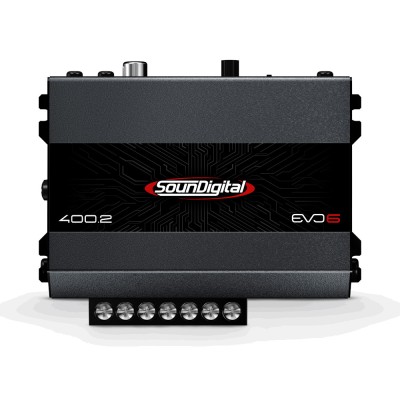

SD400.2 EVO6

400.2 EVO6 – 4 OHMS

Power @ 4Ω: 2 x 132W
Power @ 2Ω: 2 x 200W

Bridge Power @ 4Ω: 1 x 400W
Bridge Power @ 2Ω: N/A

Frequency Response (-3dB)

5Hz ~ 30kHz

Low Pass filter (12dB/octave)

80Hz

High Pass filter (12dB/octave)

80Hz

Operating Voltage

9V ~ 16V

SNR

>100dB

Input Sensitivity (RCA)

0.2V ~ 2V

Input Sensitivity (High Level input)

2.5 ~ 25V

Current Draw (music)

20A

Current Draw (max.)

40A

Power Cable

6mm² (9 AWG)

Speaker Cable

1.5mm² (15 AWG)

Remote cable

1.5mm² (15 AWG)

Recommended Fuse* (music)

25A

Recommended Battery (minimum)

40Ah

Width:

4.2"

Length:

3.4"

Height:

1.8"

Weight:

0.906 lb
