GZHW 38XSPL-D2

3500 Watts SPL

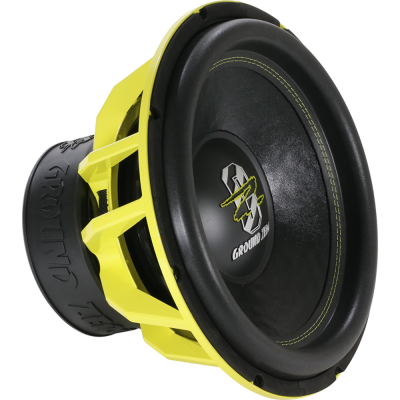

15″ high quality SPL subwoofer with alumiunum cast basket and reinforced paper cone
15″ high quality SPL subwoofer
Klippel® optimized
Reinforced paper cone
Long stroke compound surround
Solid aluminum cast basket
75 mm / 3″ copper voice coil
2-layer Polycot spider
IMPP dust cap with 3D structure logo
Model
High-Quality SPL subwoofer
Power Handling (RMS/SPL.)
1500 / 3500 Watts
Impedance
2x 2 Ohms
Efficiency
87 dB
Power Recommendation
1500 – 3500 Watts
Voice Coil
75 mm / 3" Copper
Membran Layout
Reinforced paper
Max. Excursion (Xmax)
45 mm / 1.77"
Mounting Ø
360 mm / 14.17"
Resonance Frequency (Fs)
36.3 Hz
Overall Qaulity (Qts)
0.52
Equiv. Air Volume (Vas)
32.8 L / 1.16 cu.ft
