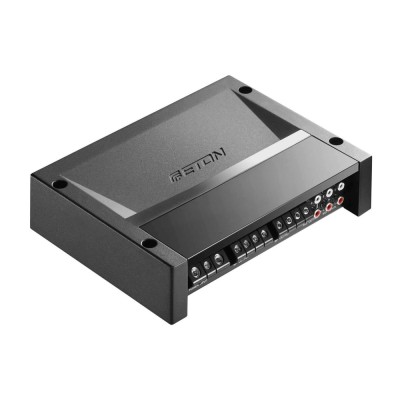

Eton 4Channel Amplifier SDA100.4 @ 4x75RMS @ 4Ohm
Κωδικός: E-43.442
Άμεσα διαθέσιμο
Τιμή
€ 369,00 € 259,00
Ποσότητα
Eton 4Channel Amplifier SDA100.4 @ 4x75RMS @ 4Ohm
4OHM 75 Watts x 4
2OHM 110 Watts x 4
4OHM bridged 220 Watts x 2
Battery Fuse Rating (Amp) External (Not Supplied) 40A
"A"Weighted Signal to Noise Ratio (CEA-2006)
Referenced to 1Watt into 4 ohms => 80 dB
"A"Weighted Signal to Noise Ratio Referenced
to rated power into 4 ohms => 90 dB
Crossover Slope 12dB/octave Butterworth
Crossover Frequency: Low Pass-Flat-High Pass variable from 50Hz - 500Hz and 500Hz - 5000Hz
Frequency Response: 20Hz - 20kHz ±1dB
Signal Voltage Adjustment Range: Variable from 300mV to 8V (RCA Input)
Protection Short circuit: Shortcut speaker outup, thermal protection
Operating Voltage: 7,6 - 15,6 Volts DC
Damping Factor >200
THD+N (Total Harmonic Distortion + Noise) < 0.2% @ 4 ohm
Width 6,81" (17,3cm)
Length 9,10" (23,1cm)
Dimensions: Height 2,16" (5,50cm)
