Monoblock

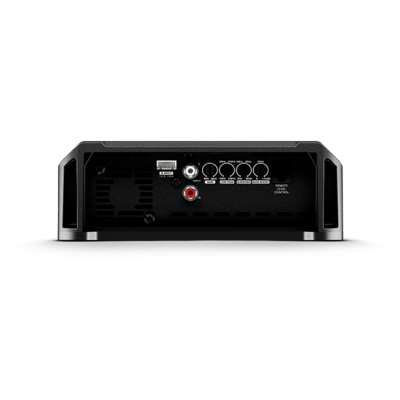

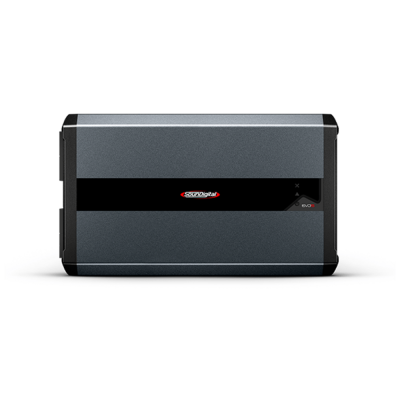

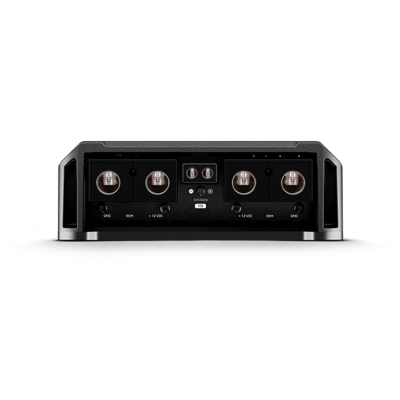

SD8000.1 EVO 5

SOUNDIGITAL
Κωδικός: SD8000.1 EVO 5
Άμεσα διαθέσιμο
Τιμή € 850,00
Ποσότητα
Προσθήκη στο καλάθι

The 8000.1 EVO 5 is a compact and modern amplifier that delivers 8000W RMS of power in 1 channel.

Incorporated with the innovative MCPCB board. Increasing your efficiency and ensuring much more consistent performance.

  • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

    8000.1 EVO 5 – 1 OHM

    Power @ 4Ω: 1 X 3844 WRMS
    Power @ 2Ω: 1 X 5360 WRMS
    Power @ 1Ω: 1 X8000 WRMS

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      8000.1 EVO 5 – 1 OHM

      Power @ 4Ω: 1 X 3844 WRMS
      Power @ 2Ω: 1 X 5360 WRMS
      Power @ 1Ω: 1 X 8000 WRMS

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      8000.1 EVO 5 – 2 OHMS

      Power @ 4Ω: 1 X 5360 WRMS
      Power @ 2Ω: 1 X 8000 WRMS
      Power @ 1Ω: N/A

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Frequency Response (-3dB):

      8Hz ~ 20kHz

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Subsonic (12dB/oct):

      8Hz ~ 80Hz

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Low Pass filter (12dB/oct):

      50Hz ~ 20kHz

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Bass Boost:

      0dB ~ 12dB @ 50Hz

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Operating Voltage:

      9V ~ 16V

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      SNR

      @ 1Ω: 92dB
      @ 2Ω: 85dB

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Input Sensitivity (RCA):

      0.2V ~ 2V

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Input Sensitivity (High Level input):

      1.3V ~ 15V

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Current Draw (music):

      381A

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Current Draw (max.)

      762A

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Total Efficiency:

      80%

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Damping Factor (@100Hz nominal impedance)

      >10000

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Power Cable:

      70mm² (00 AWG)

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Speaker Cable

      2 x 10mm² (7 AWG)

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Recommended Fuse (music):

      2 x 200A

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Recommended battery (minimum):

      2 x 220Ah

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Width:

      7.1" / 18 cm

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Length:

      12.2" / 31 cm

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Height:

      2.5" / 6.32 cm

    • https://soundigital.com/en/wp-content/uploads/2022/03/hd.jpg') repeat;">

      Weight:

      8.79 lb / 3.99 kg
