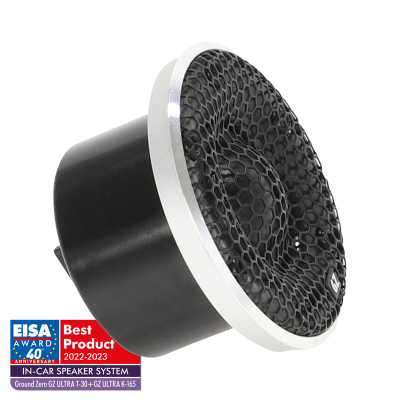

GROUND ZERO GZ ULTRA T-30

150 watts max

30 mm / 1.18″ ultra-high-end soft dome tweeter with precision-coated textile diaphragm and CNC manchined aluminum chamber

• 30 mm / 1.18″ ultra-high-end tweeter
• Tightly-tolerated technical parameters
• Vented voice coil former reducing distortion
• Lightweight CCA voice coil improving efficiency
• Particular dome for pressure balancing
• Machined aluminum chamber with wave diffuser
• GZ-design wave-guide face plate
• High-efficient neodymium motor
• Documented final technical inspection
• Wooden box packaging / in matching pairs

• Model	Ultra-high-end tweeter
  Diameter	30 mm / 1.18″
  Power Handling (RMS/max.)	100 / 150 Watts
  Impedance	4 Ohms
  Efficiency	82 dB
  Frequency Response	1000 Hz – 26 kHz
  Voice Coil	CCA
  Membran Layout	coated textile

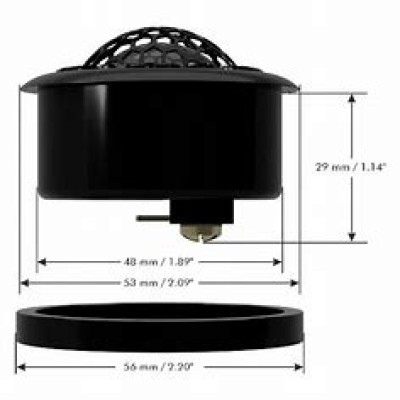

  Mounting Ø	60 mm / 2.36″
  Mounting Depth	41 mm / 1.61″
  Resonance Frequency (Fs)	500 Hz
