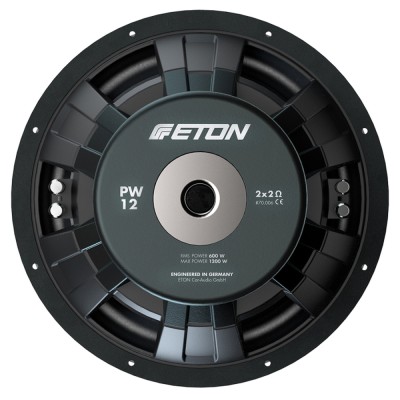

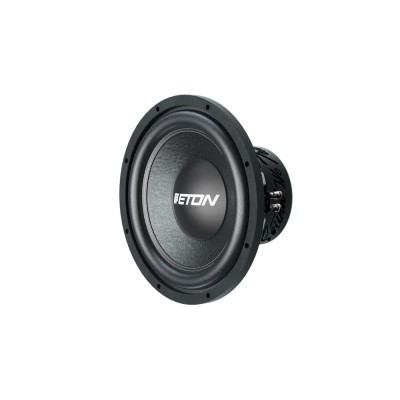

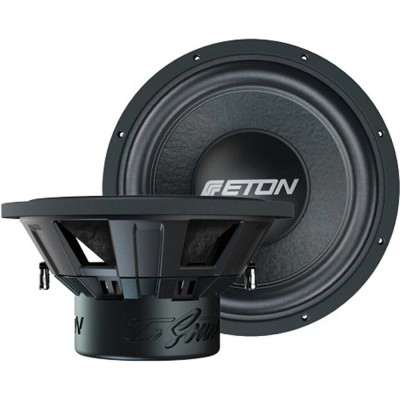

Eton PW12 Subwoofer 12'' 600W RMS
Κωδικός: W-70.006
Άμεσα διαθέσιμο
Τιμή
€ 199,00 € 179,00
Ποσότητα
Eton PW12 Subwoofer 12"
TECHNICAL DATA
| size | 12 "/ 30 cm |
| outer diameter | 326 mm |
| Installation depth | 152 mm |
| Nominal load capacity | 600 W RMS |
| Music resilience | 1200 W |
| Impedance | 2 x 2 ohms |
| Number of voice coils | 2 |
| Magnetic drive | Ferrite magnet |
| Nominal impedance Zn (Ω) | 2 x 2 Ω |
| DC resistance Re | 3.8 Ω |
| Resonance frequency fs 1W / TSP (Hz) | 31,6 |
| Total Q QTS | 0.462 |
| Electrical Q QES | 0.502 |
| Mechanical Q QMS | 5.734 |
| Equivalent air volume of suspension VAS (dm3) | 43.720 |
| Force factor BL x l (Tm) | 17.912 |
| Suspension compliance CMS (mm/N) | 0.121 |
| Total moving mass MMS (g) | 208 |
| Voice coil diameter | 63 |
| Voice coil inductance Le (mH) @ 10 kHz | 1.498 |
| Effective piston area SD (cm2) | 502 |
| SPL (dB) *bei 1 W / 1m | 87.0 |
| Rated power / music power (W) | 600 / 1200 W |
